Product Center

Product

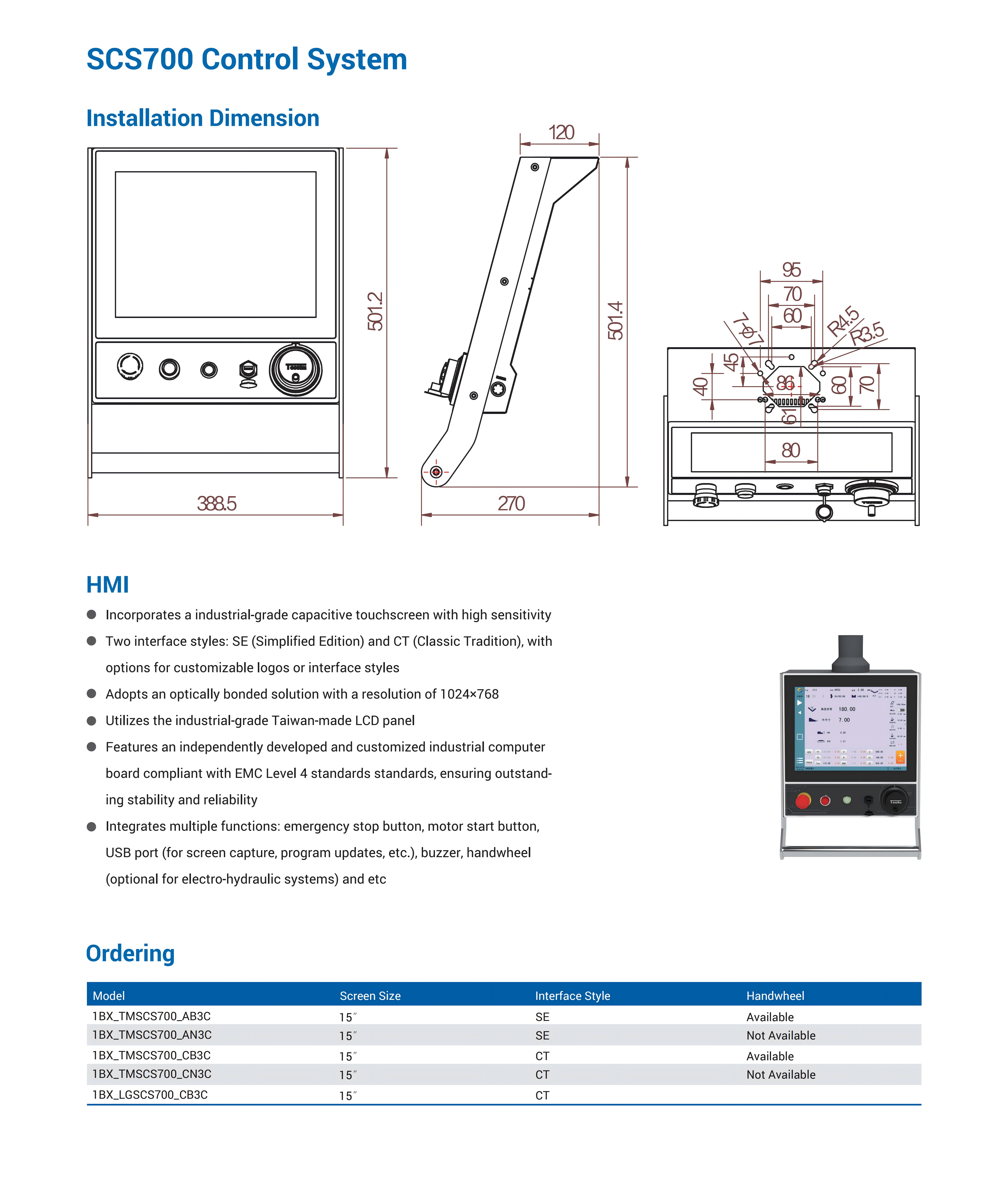

SCS700 Control System
Product Introduction

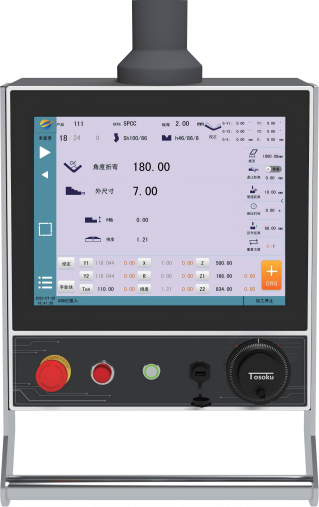

● Incorporates a industrial-grade capacitive touchscreen with high sensitivity

● Two interface styles: SE (Simplified Edition) and CT (Classic Tradition), with options for customizable logos or interface styles.

● Adopts an optically bonded solution with a resolution of 1024×768.

● Utilizes the industrial-grade Taiwan-made LCD panel.

● Features an independently developed and customized industrial computer board compliant with EMC Level 4 standards standards, ensuring outstanding stability and reliability

● Integrates multiple functions: emergency stop button, motor start button, USB port (for screen capture, program updates, etc.), buzzer, handwheel (optional for electro-hydraulic systems) and etc.


Product Details





Download the **Product Brochure** for more details.
