SCS800 Control System
Product Introduction

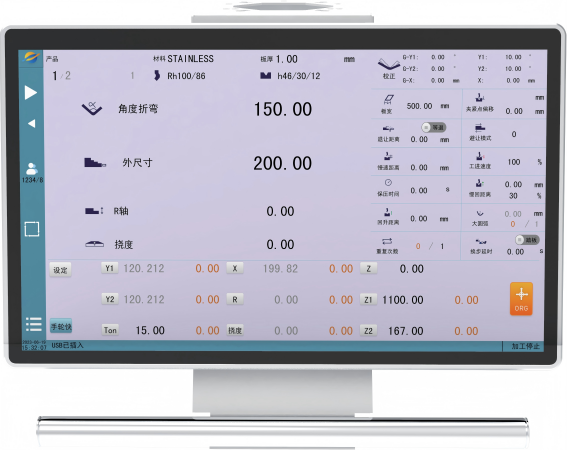

● Incorporates a industrial-grade capacitive touchscreen with high sensitivity.

● Two interface styles: SE (Simplified Edition) and CT (Classic Tradition), with options for customizable logos or interface styles.

● A 18.5-inch LCD screen featuring a resolution of 1920 × 1080.

● Utilizes the industrial-grade Taiwan-made LCD panel.

● Features an independently developed and customized industrial computer board compliant with EMC Category C4 standards, ensuring outstanding stability and reliability.

● Integrates multiple functions: emergency stop button, motor start button, USB port (for screen capture, program updates, etc.), buzzer, handwheel (optional for electro-hydraulic systems) and etc.

Product Details

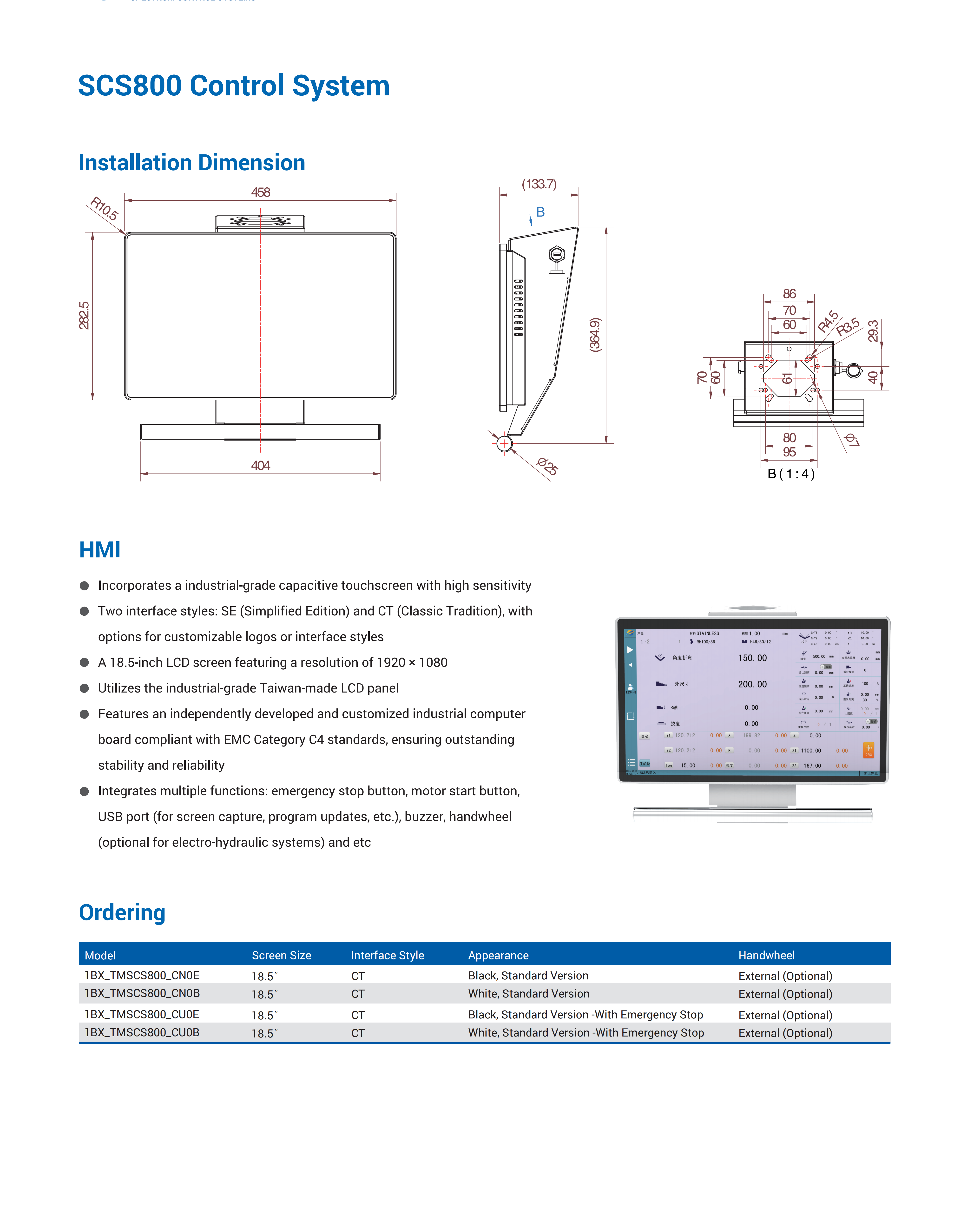

Download the **Product Brochure** for more details.
